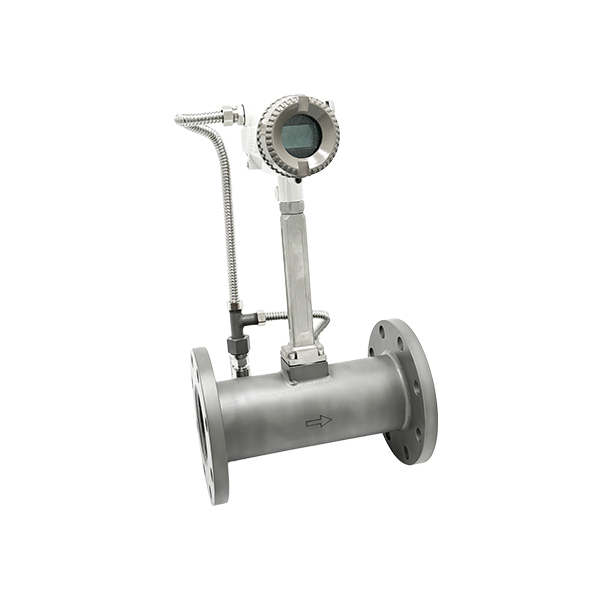

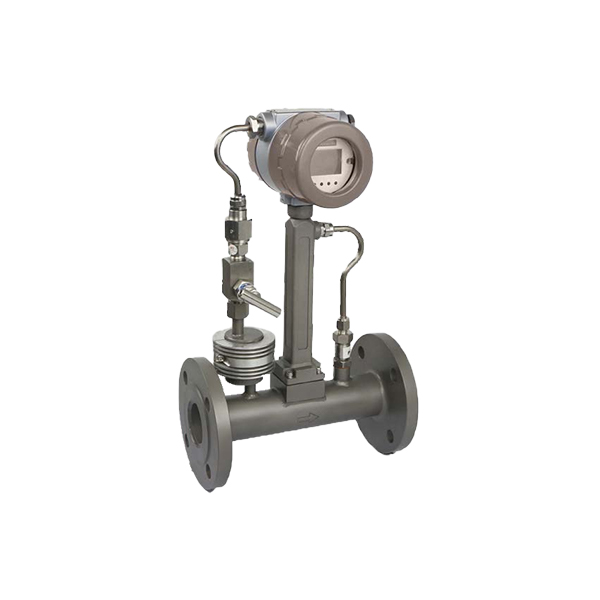

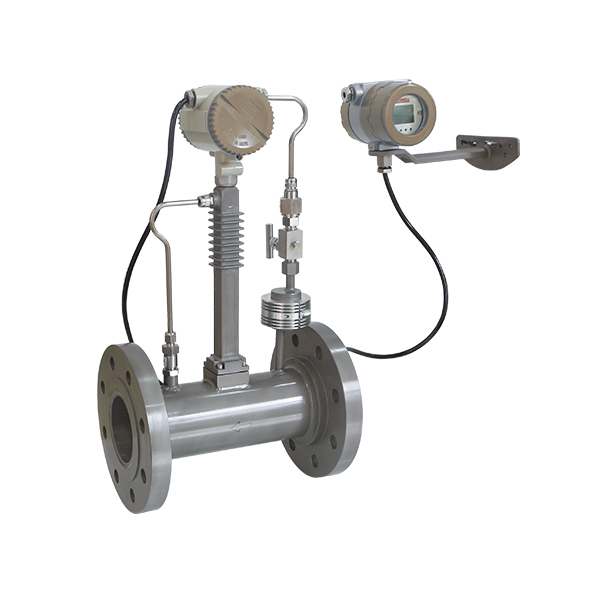

Vortex Flow Meter
The vortex flow meter is used for measuring the flow velocity of gases or liquids in pipelines flowing full. The measuring principle is based on the development of a Karman vortex shedding street in the wake of a body built into the pipeline The periodic shedding of eddies occurs first from one side and then from the other side of a bluff body (vortex-shedding body) installed perpendicular to the pipe axis...
Product Description
Description
GIVO vortex flow meter is a flow measurement device best suited for flow measurements where the introduction of moving parts presents problems. They are available in industrial grade, brass or all plastic construction. Sensitivity to variations in the process conditions are low and with no moving parts have relatively low wear compared to other types of flow meters.
Specification
- For measurement of kinds of gas, air, steam, liquids as well
- Output type, pulse, 4-20mA, RS485, HART
- Accuracy, ±1.5%, ±1.0% option
- Power of 3.6V DC battery, 24V DC+5% available
- Available size is from DN10~DN500
- Insertion type is available, from DN100~DN2000
- Flange type is available for DIN PN, ANSI, JIS
Feature
- Unaffected by changes of pressure, density, temperature & viscosity
- Resistance temperature from-40℃...+420℃
- Ambient temperature resistance from-20℃~+50℃
- Protection rating, IP65, IP67, IP68 as customized
- Velocity scope of flow about intelligent digital filtering vortex flowmeter,
liquid(0.3m/s...10m/s), gas/steam(3.0m/s...90m/s)
Feature
It is widely used in various fields of national economy such as metallurgy, electric power, coal, chemical, petroleum, transportation, construction, textile, food, medicine, agriculture, environmental protection and people's daily life. It is the development of industrial and agricultural production, saving energy and improving. Product quality, improve economic efficiency and management level
Energy is divided into primary energy (coal, crude oil, coal bed methane, petroleum gas and natural gas), secondary energy (electric power, coke, artificial gas, refined oil, liquefied petroleum gas, steam) and energy-carrying medium (compressed air, oxygen, Nitrogen, hydrogen, water, etc Emissions of flue gas, waste liquid, sewage, etc. seriously pollute the atmosphere and water resources, etc
