Variable Area Flow Meter
Product Description
Specification
-Mechanical display and LCD display
-Robust and universal
-The short-stroke design allows the measurement of high flow rate using a relative short metering tube
-Special application is for hazardous, dangerous or aggressive fluid, for high temperature and high pressure rates
-All stainless steel design provides a safe measurement of a variety of liquids, gases and steam- The measuring section can be equipped with a heating jacket
-Standard rotameter is mounted in a vertical pipeline with flow direction upwards
Description

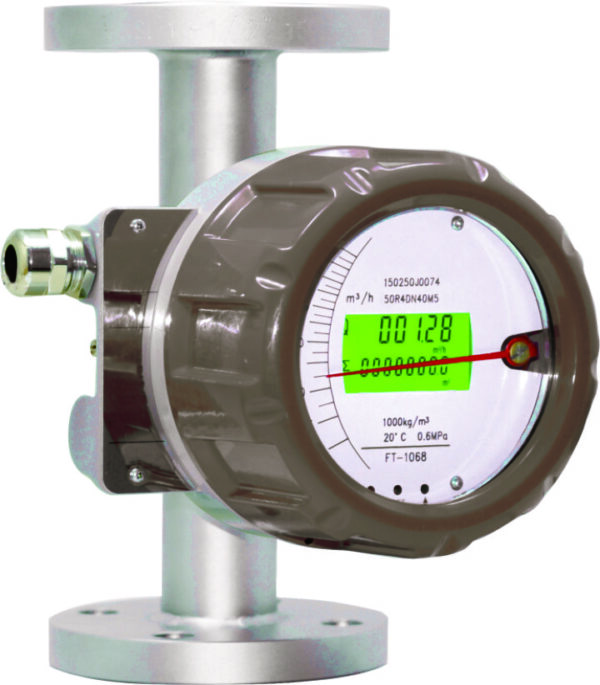

The GIVA variable area flow meter is an instrument for measuring the flow of liquids or gases in pipelines. It includes a vertical tube through which the fluid flows whose diameter increases from the bottom to the top and a float which can move vertically in the tube.
As the flow increases this float moves to a higher position until its resistance to the fluid flow is balanced of the float is a measure of the flow rate.The flow rate values can be read on a scale.
Applications
-Chemical Industry
-Water Treatment
-Gas Distribution
-Urban Water Supply Systems
-Laboratories
-Food & Beverage Industry
-Pharmaceutical Industry
-HVAC Systems
-Environmental Monitoring
Technical Data
| Accuracy | ±1.5% of rate; ±2.5% of rate |
| Pressure | DN15-DN50≤4.0Mpa; DN65-DN200≤1.6Mpa |
| -80°C~200°C; DN15-DN100: ≤10Mpa | |
| 200°C~350°C; DN15-DN100: ≤6.3Mpa(high pressure requirement) | |
| Pressure Loss | 7kpa - 70kPa |
| Medium Temp. | SS304 (standard type) : -20°C...+120°C |
| PTFE: -40°C...+70°C; | |
| PFA: -40°C...+120°C; | |
| High Temp.: +120°C...+450°C; | |
| Low Temp.: -80°C...-20°C | |
| Viscosity | DN15: <5mPa. S; <30mPa.s |
| DN25: <250mPa.s | |
| DN50- DN150: <300mPa.s | |
| Ambient Temp. | Mechanical type: -40°C...+120°C |
| Digital type: -40°C...+70°C; Explosion proof type: -40°C...+60°C | |
| Electrical Interface | Electrical connection: 1/2" NPT; M20x1.5 |
| Power Supply | Standard type(SS304): 24V DC (12V DC-32V DC); Two-wire system |
| With alarm function type: 24V DC(18V DC-32V DC); Multi-wire system | |
| 220V AC (90V AC-242V AC) 50-60Hz; Multi-wire system | |
| Battery 3.6V @9AH Lithium battery | |
| Protection | IP65; IP67(round type) |
| Explosion-proof | ExialICT1-5; ExdIIBT1-6(round type) |
