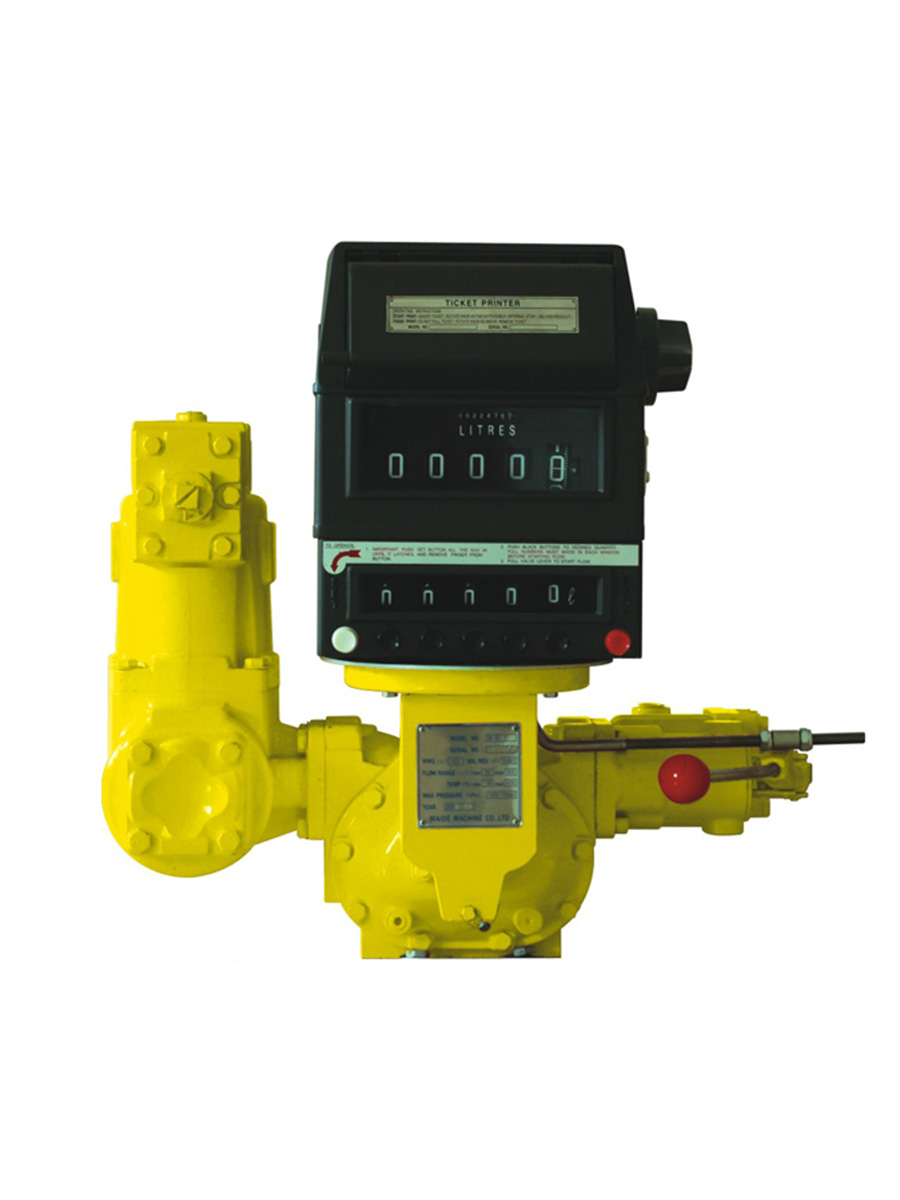

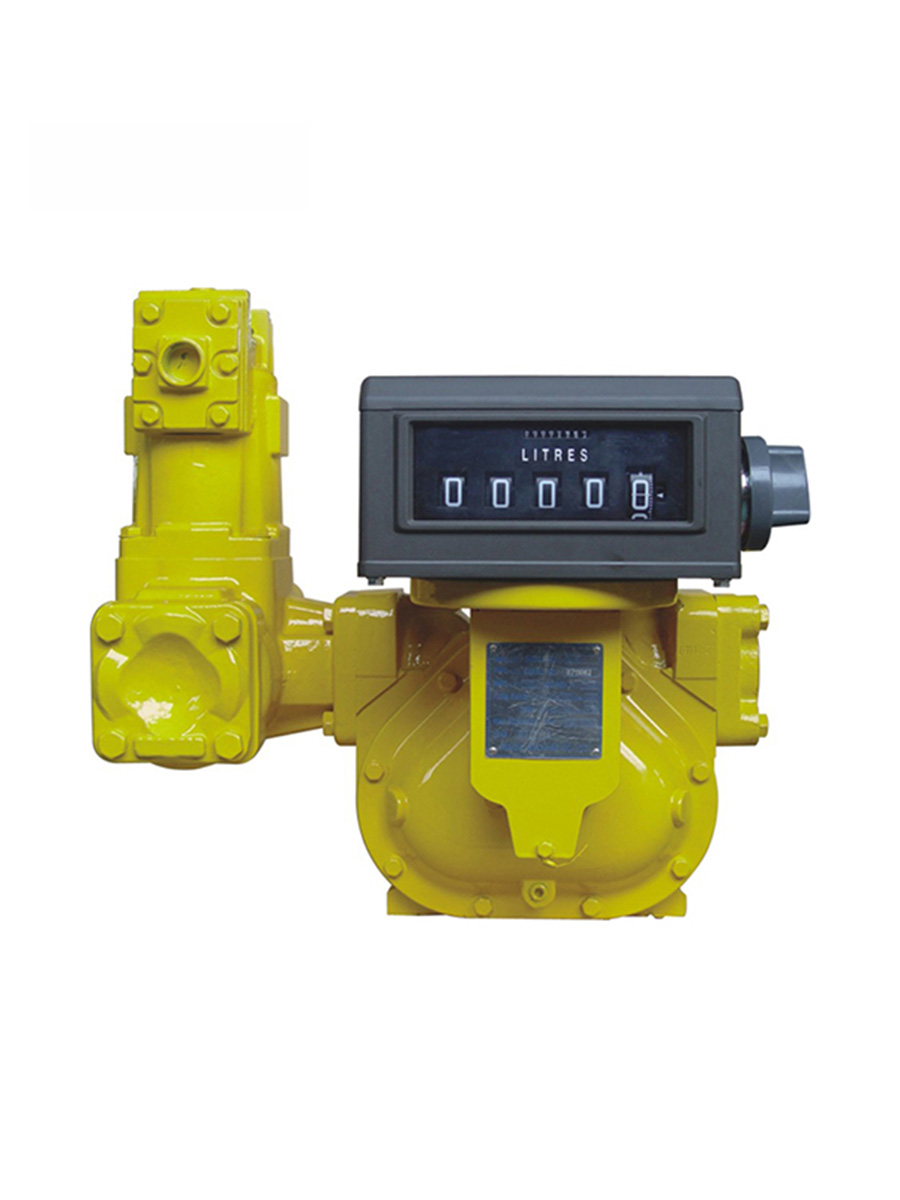

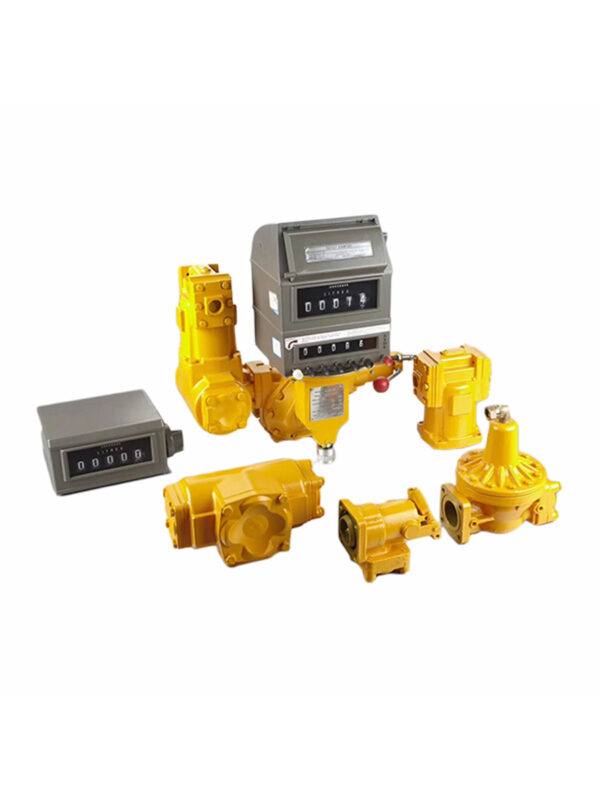

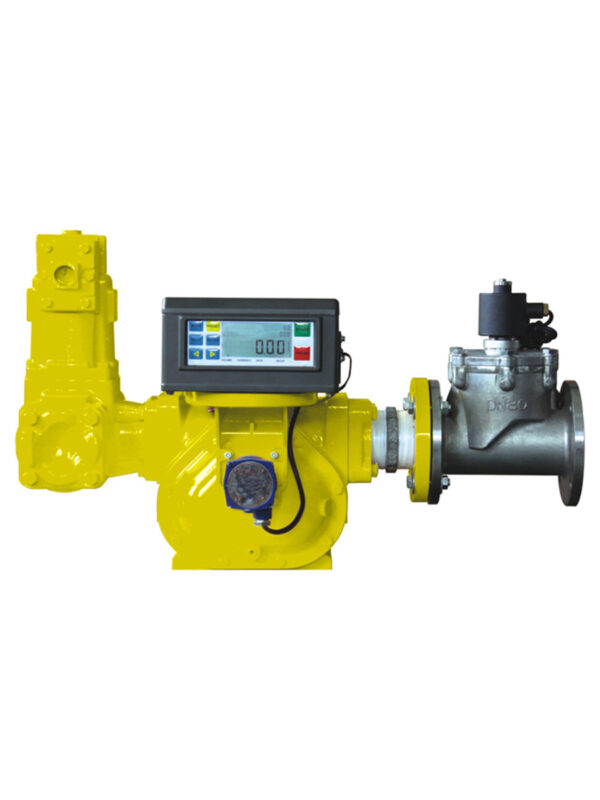

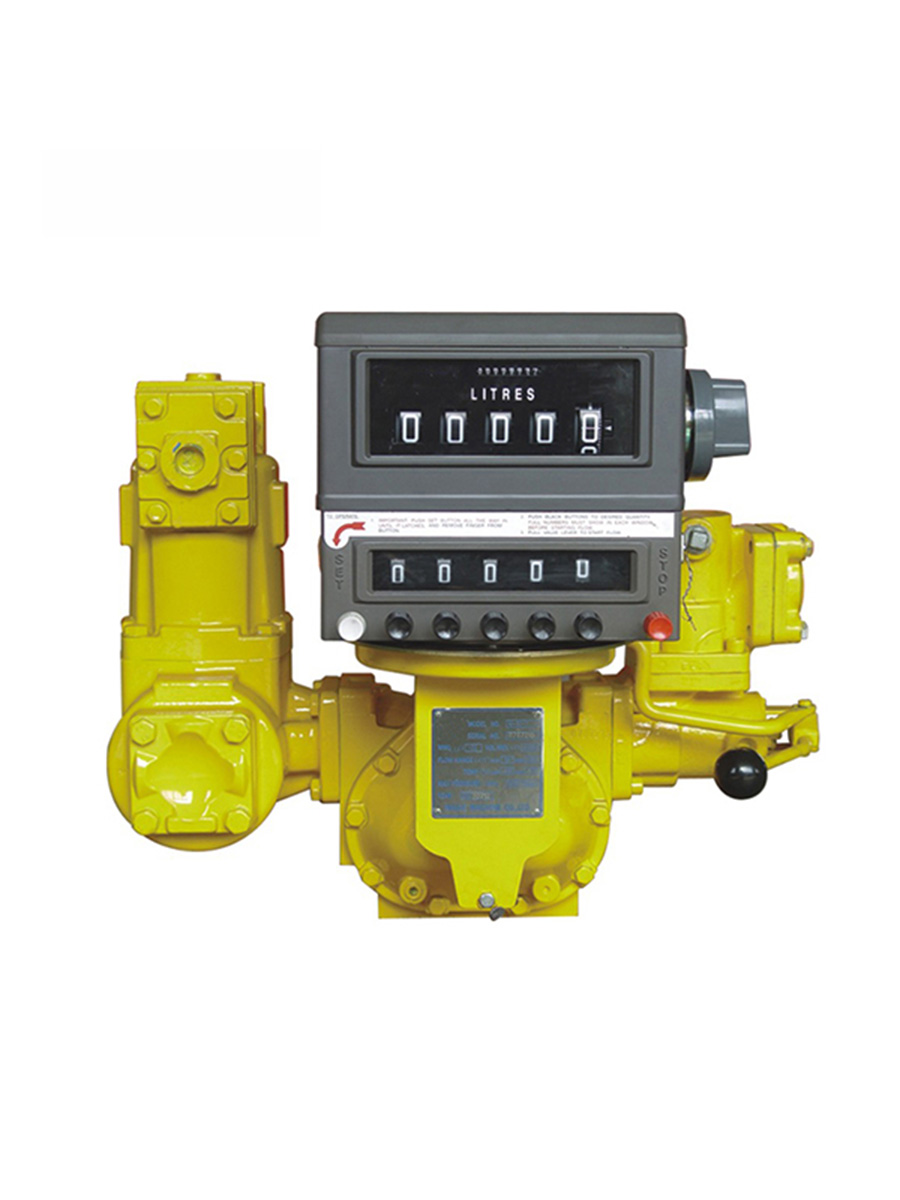

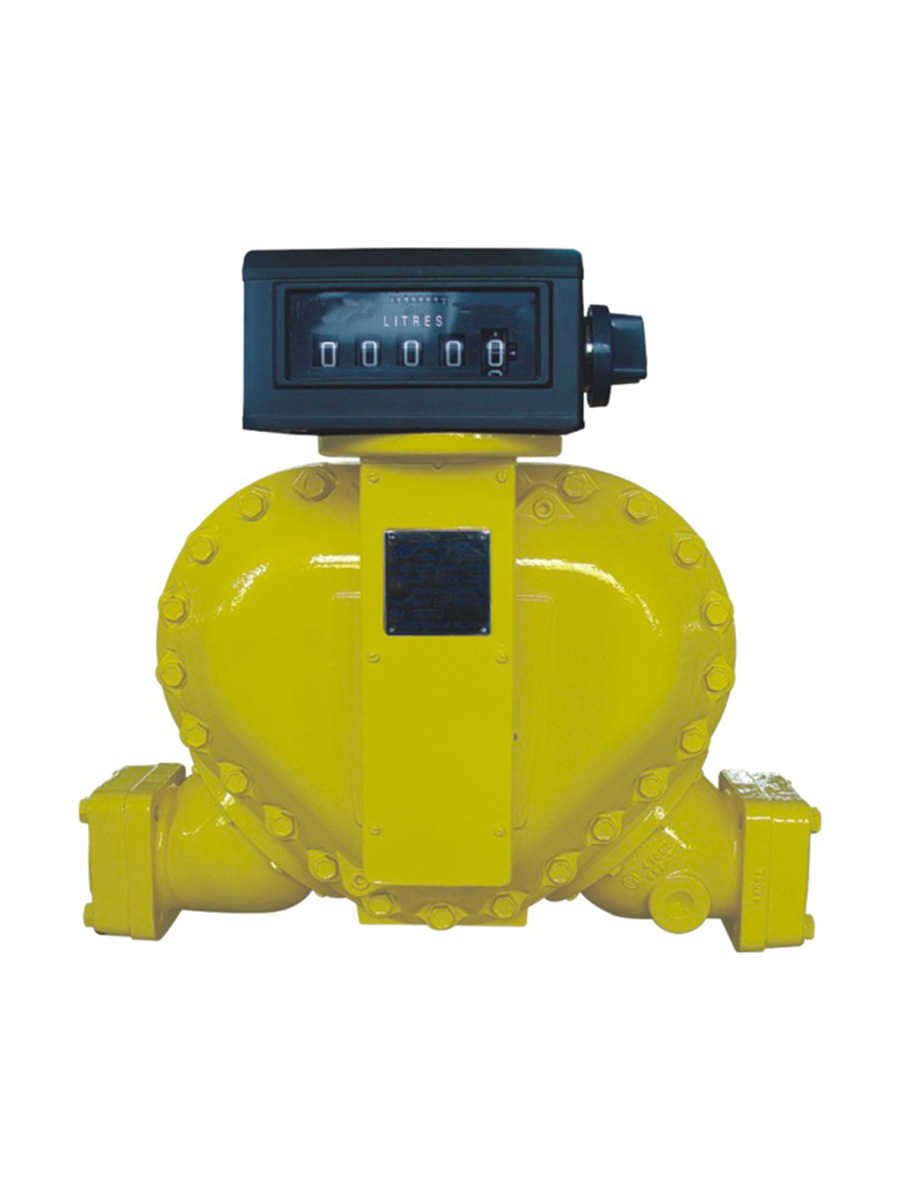

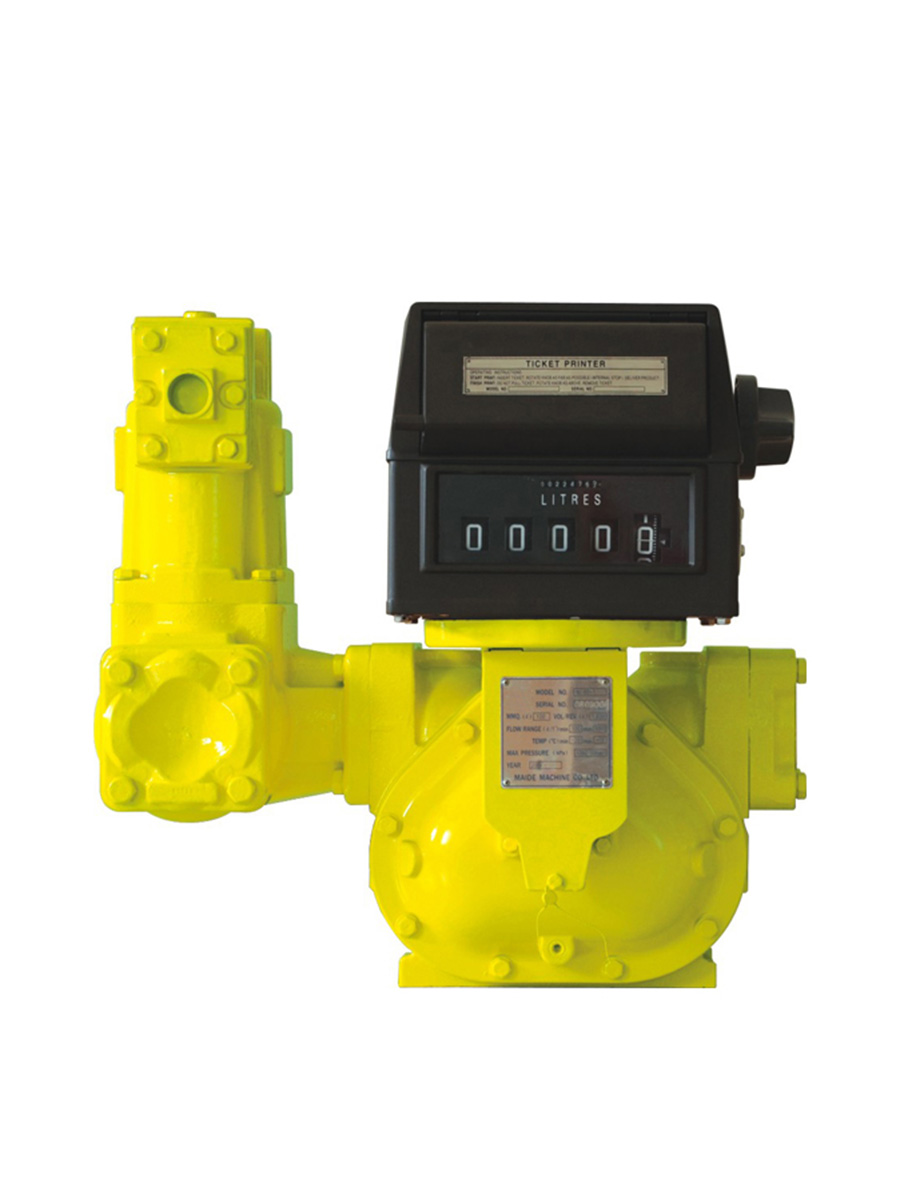

Positive Displacement Flow Meter
Product Description
Specification
● Excellent stepless adjusting mechanism allow a mico adjustment of the meter
● High accuracy and repeatability over the widest range of flow; superior accuracy at constant flow
● Low maintenance, no metal-to-metal contact in measuring chamber. long life service
● Low pressure loss, a true gravity flow meter
● Accuracy regardless of pressure fluctuations, temperature variation, viscosity
● Choice of aluminum, cast iron and stainless steel materials of construction
Description
Positive Displacement Flow Meter is designed for liquid metering both in transfer and process control applications. Thanks to their design they are easy to keep and can suit a wide range of applications. The meter consists of a housing where two bladed displacement rotors and a central single blocking rotor turn in synchronized relationship within three cylindrical bores with no metal-to-metal contact within the meter element. Each rotor is supported on either end by a bearing plate through which the rotor shafts protrude.
Applications
-Manufacturing Industry
-Apartments
-Residential Communities
-Wastewater Treatment
-Factory Water Use
-Livestock Farming
-Agricultural Greenhouses
-Lrrigation of Farmland
Technical Data
| Model | M-40-1 | M-50-1 | M-80-1 | M-100-1 | M-150-1 |
| Size (Inch) | 1-1/2" | 2" | 3" | 4" | 6" |
| Flow Range (L/min) | 25-250 L/min | 55-550 L/min | 115-1150 L/min | 170-1700 L/min | 300-3000 L/min |
| Volume Per Revolution | 0.309 L | 0.681 L | 1.839 L | 5.102 L | 14.87 L |
| Max Pressure (Bar) | 10 Bar | ||||
| Accuracy | ±0.2% | ||||
| Repeatability | ≤0.07% | ||||
| Standard Measurement | Liter/US Gallon/IMP Gallon | Liter and US Gallon | Liter/US Gallon/IMP Gallon | ||
| Dimension (cm) | 51×46×49 | 58×50×61 | 76×64×72 | 80×65×79 | |
| Net Weight | 23 kg | 26 kg | 40 kg | 70 kg | 130 kg |
| Gross Weight | 25 kg | 28 kg | 47 kg | 93 kg | 180 kg |
| Package | 1pc/Strong Yellow Paper Carton | 1pc/Wooden Case | |||
