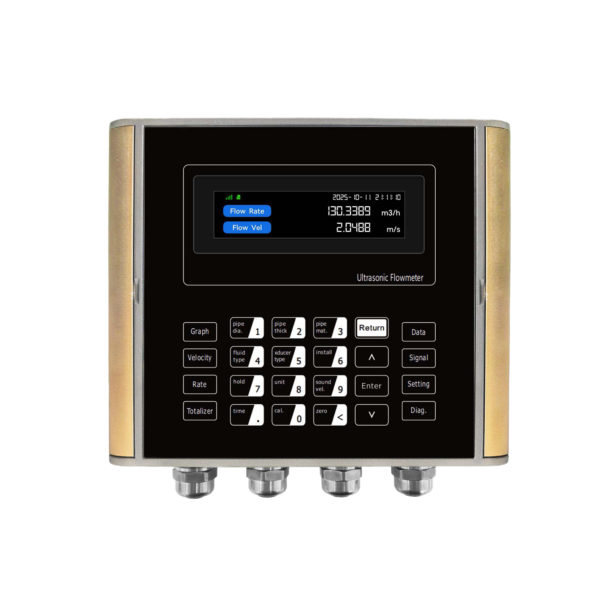

GIWU-118 Series Ultrasonic Flow Meter
This Ultrasonic Flow meter adopts the time-difference measurement principle. The ultrasonic waves emitted by the sensor in a fluid, the flowing in the propagation direction of acoustic wave propagation velocity downstream increases, decreases the upstream direction, have different propagation distance in the same transmission time, measure the flow rate according to the difference of the transmission time and the fluid flow velocity. When the ultrasonic signal is transmitted through the flowing liquid, there will be a difference between the upstream and downstream transit time ( travel time or time of flight ), which is propor tional to flow velocity, according to the formula below.
Product Description
Description
This Ultrasonic Flow meter adopts the time-difference measurement principle. The ultrasonic waves emitted by the sensor in a fluid, the flowing in the propagation direction of acoustic wave propagation velocity downstream increases, decreases the upstream direction, have different propagation distance in the same transmission time, measure the flow rate according to the difference of the transmission time and the fluid flow velocity. When the ultrasonic signal is transmitted through the flowing liquid, there will be a difference between the upstream and downstream transit time ( travel time or time of flight ), which is propor tional to flow velocity, according to the formula below.
Feature
- Clamp-on installation: Simple and convenient, no pipe-breaking required.
- On-site calibration & maintenance: No production shutdown needed.
- Bidirectional flow measurement: Supports positive/negative flow measurement and cumulative flow calculation.
- Data storage capacity: 8.8 million sets of data.
- MTBF (Mean Time Between Failures): Tested for 50,000 hours of trouble-free operation.
- Power-failure flow compensation: Automatically compensates for flow data during power outages.
- Time-segmented flow statistics & timing control: Enables flow analysis by time periods and scheduled operation.
- Keypad durability: Heat-resistant keypad with a service life of over 200,000 operations.
- Sensor cable tensile strength: 800 Newtons.
- Sensor cable signal attenuation: -90dB per 100 meters.
- Robust WiFi functionality: Offers more convenient and faster operation.
Application
- Water Treatment and Water Supply Industry
- Construction and HVAC Systems
- Chemical Industry
- Food and Beverage Industry
- Agriculture and Irrigation
- Oil and Gas Industry
- Urban Drainage Systems
- Rivers, Canals, and Reservoirs
- Environmental Monitoring
Technical Data
Transmitter
| Measurement Object | Single-phase sound-conducting liquid |
|---|---|
| Sensor | Standard external clamp type |
| Model | C011 |
| Diameter | 25 mm ~ 5000 mm |
| Humidity | 0% ~ 99% RH |
| Temperature | -40°C ~ 80°C |
| Enclosure Material | Stainless Steel, PEI |
| Protection | IP68 |
| Pressure | N/A |
| Installation | Supports V-type and Z-type installation |
| Cable | 09 Dedicated Twisted Pair Cable |
| Dimensions (W×H×D) | 70 mm × 30 mm × 25 mm (excluding cable length) |
| Probe Weight (per pair) | 2 kg |
| Explosion Proof | Exia IIB T4, Exia IIC T4, Exia IIB T6, Exia IIC T6 |
Sensor
| Measurement Medium | Single-phase sound-conducting liquid |
|---|---|
| Turbidity Range | Less than 10 g/L |
| Flow Condition Requirement | Stable turbulent or laminar flow, pipe fully filled |
| Temperature | Standard: -40°C ~ 80°C; High Temp: -40°C ~ 150°C |
| Velocity | ±0.01 m/s ~ ±12 m/s (±0.03 ft/s ~ ±40 ft/s) |
| Pipe Material | Carbon Steel, Stainless Steel, PVC, Cast Iron, Copper, Aluminum, Ductile Iron, Asbestos, Fiberglass, or materials with known acoustic velocity |
