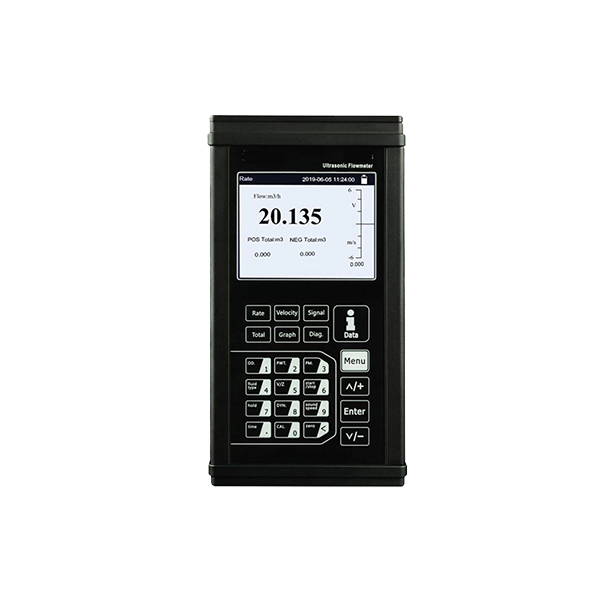

GIHU Series Ultrasonic Flow Meters
Ultrasonic flow meters are the equipment of choice whenever the contact with the measured fluid isn't possible. Ultrasonic measurements are made by attaching two transducers onto the outside of a pipe. GIHU and GIWU series transit time ultrasonic flow meters measure the time difference between the ultrasonic pulse going upstream and the one propagating downstream. These sound waves are generated by a pair of transducers. The difference between the two intervals of time is a function of flow direction and velocity, and it represents an accurate measure for the average velocity of the liquid flowing through a pipe.
Product Description
Description
Ultrasonic flow meters are the equipment of choice whenever the contact with the measured fluid isn't possible. Ultrasonic measurements are made by attaching two transducers onto the outside of a pipe. GIHU and GIWU series transit time ultrasonic flow meters measure the time difference between the ultrasonic pulse going upstream and the one propagating downstream. These sound waves are generated by a pair of transducers. The difference between the two intervals of time is a function of flow direction and velocity, and it represents an accurate measure for the average velocity of the liquid flowing through a pipe.
Specification
- Flow range, ±0.03 ft/s ~ ±40 ft/s (±0.01 m/s~ ±12 m/s)
- Measurement range: 1"~48"(25mm~1200mm)
- Output, OCT Pulse output:0~5000Hz,
- Analog output:4~20mA,max load 750Ω
- Power type: 10~36VDC/1A for wall mounted type
- Battery rechargeable for handheld type(11.1V rechargeable Lithum Battery Power,continuous operation of main battery 16 hours)
- SD card is option for handhled type, storage 1GB,Max 512 files,Interval:5 60 seconds
Feature
- Low pressure loss, easier installation & operation, maintance
- Clear, user-friendly menu selections make flowmeter simple and convenient to use, daily, monthly,yearly flow totalized calculation
- Less hardware components, low voltage broadband pulse transmission, low consumption power
- Parallel operation of positive, negative and net flow totalizes with scale factor (span) and 7 digit display, while the output of totalize pulse and frequency output are transmitted via relay and open collector
Application
- lt is a non-contact method for flow measurement, so it provides an effective solution to strong corrosion, radioactivity, blockage, viscosity, low pressure loss, non-leakage media, air bubbles, and particles
- Factory sewage discharge monitoring, production process water consumption measurement, milk flow measurement, ore dressing slurry flow measurement
- Sodium aluminate and other process flow measurement and control, genset coil cooling water flow measurement, cooling circulating water flow measurement, oil well water injection flow measurement
