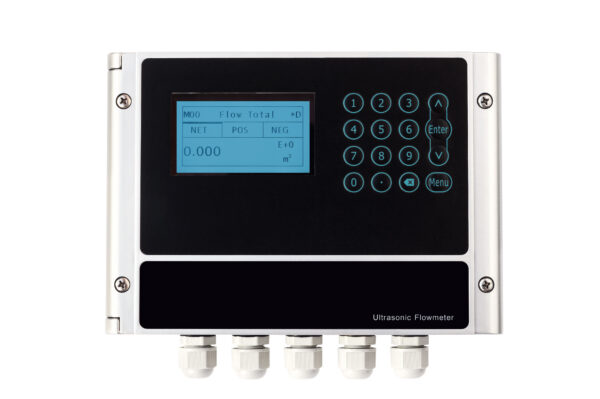

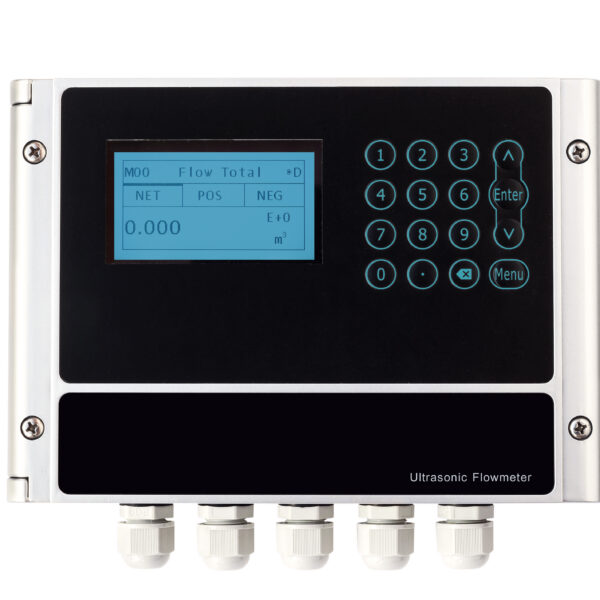

GIWU-226 Series Ultrasonic Flow Meter
This Ultrasonic Flow meter adopts the time-difference measurement principle. The ultrasonic waves emitted by the sensor in a fluid, the flowing in the propagation direction of acoustic wave propagation velocity downstream increases, decreases the upstream direction, have different propagation distance in the same transmission time, measure the flow rate according to the difference of the transmission time and the fluid flow velocity. When the ultrasonic signal is transmitted through the flowing liquid, there will be a difference between the upstream and downstream transit time ( travel time or time of flight ), which is propor tional to flow velocity, according to the formula below.
Product Description
Description
This Ultrasonic Flow meter adopts the time-difference measurement principle. The ultrasonic waves emitted by the sensor in a fluid, the flowing in the propagation direction of acoustic wave propagation velocity downstream increases, decreases the upstream direction, have different propagation distance in the same transmission time, measure the flow rate according to the difference of the transmission time and the fluid flow velocity. When the ultrasonic signal is transmitted through the flowing liquid, there will be a difference between the upstream and downstream transit time ( travel time or time of flight ), which is propor tional to flow velocity, according to the formula below.
Feature
- The design is compact, lightweight, and easy to carry.
- Calculate positive and negative flow and cumulative measurement.
- Add SD card data automatic storage function, data will never be lost again.
- Rechargeable batter y and universal power supply design.
- Advanced modular integrated design, independent menu operation,
- large-screen LCD backlight 4 lines display.
- Particularly suitable for on-site flow detection for various pressure requirements
Application
- Water Treatment and Water Supply Industry
- Construction and HVAC Systems
- Chemical Industry
- Food and Beverage Industry
- Agriculture and Irrigation
- Oil and Gas Industry
- Urban Drainage Systems
- Rivers, Canals, and Reservoirs
- Environmental Monitoring
Technical Data
| Parameter | GIHU-226 Details | GIHU-226-S (Standard) Details |
|---|---|---|
| Model | GIWU-226 | GIWU-226-S (Standard) |
| Type | Wall-mounted | Wall-mounted |
| Accuracy | ±0.5% of measured value
(0.5m/s ~ 12m/s) |
±1% of measured value |
| Repeatability Error | 0.15% | 0.2% |
| Flow Range | ±0.01m/s ~ 12m/s | ±0.03m/s ~ 15m/s |
| Pipe Size | 1/2" to 200" (15mm to 5000mm) | 1/2" to 48" (15mm to 1200mm) |
| Pipe Material | Carbon steel, stainless steel, PVC, Cast iron | Carbon steel, stainless steel, PVC |
| Output | Relay, SPST, max 1Hz, (0.4A @125VAC or 2A @30VDC)
OCT pulse, 0-999Hz |
4-20mA, max load 750Ω
OCT pulse, 0-10KHz |
| Communication | RS232 & RS485, HART 7.0 | / |
| SD Card | Default, 32G | Optional, 32G |
| Power Supply | 90 to 245 VAC & 10 to 36VDC | Default: 10-36VDC @1A
Optional: 90 to 245 VAC |
| Display | 999999.9, 1-2 digits after the decimal point | 999999.9, 1-2 digits after the decimal point |
| Temperature | -20℃ ~ 60℃ | -20℃ ~ 60℃ |
| Temperature (Sensor) | Default: -40℃ ~ 80℃; Max: -40℃ ~ 180℃ | (No separate details listed) |
| Protection (Transmitter) | IP65 | (No separate details listed) |
| Protection (Sensor) | IP68 | IP68 |
| Cable Length | 9m, up to 27m | (No separate details listed) |
| Housing | Aluminum Alloy | PC/ABS |
| Humidity | Up to 99% RH, non-condensing | Up to 99% RH, non-condensing |
