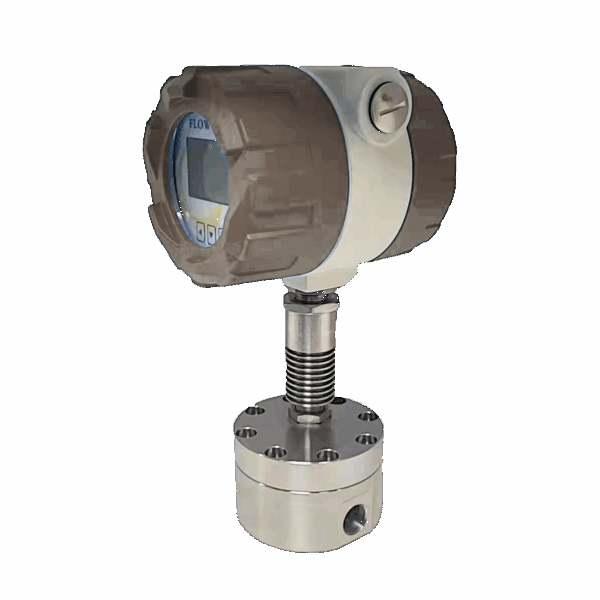

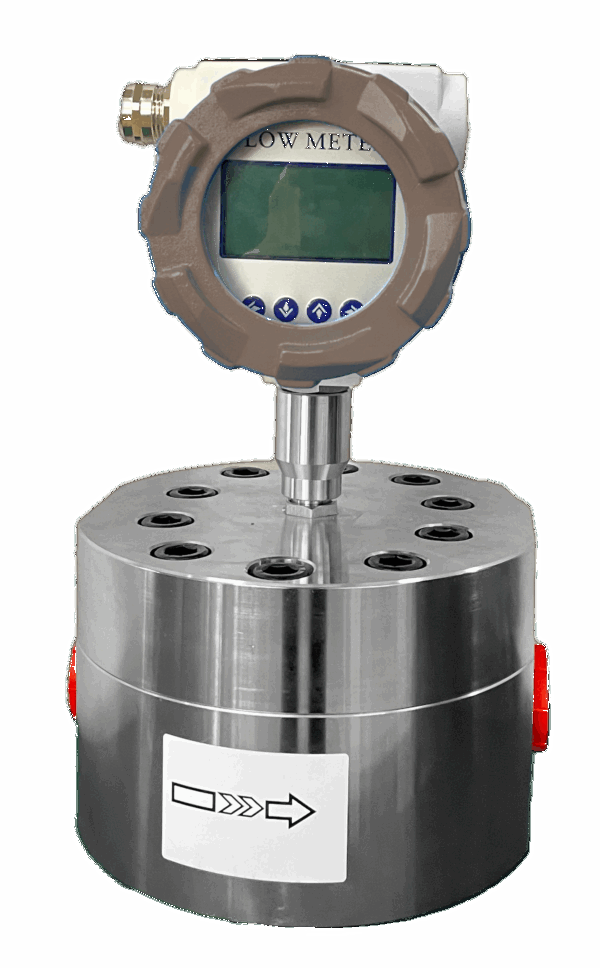

Gear Flow Meter

Product Description

Specification

-Temp.& pressure compensation

-Digital absolute pressure transmitter

-Segment LCD, displays normally at -30℃

-Integrated movement

-Communication: Modbus RS485

-Simultaneous display flow rate, total flow volume, pressure & temp

Description

The gear flow meter is a type of Positive Displacement flow meter used to measure the volumetric flow of liquids. Positive Displacement flow meters directly measure the volume that passes through the meter rather than the velocity or some other physical characteristic of the liquid to calculate the volumetric flow rate, making them a volumetric meter. Volumetric meters directly measure the total volume passing through the meter rather than measuring the velocity of the flow or inferring the volumetric flow rate from some physical characteristic such as the conductivity or sound velocity. The advantage of volumetric meters over inferential or velocity meters is that the viscosity effects are largely removed. Fluids like oils and greases can be measured at very low flow rates where the other technologies require much higher minimum flow rates and so are ineffective for real world application rates.

Applications

-Chemical Industry

-Oil and Gas Industry

-Urban Gas Distribution Networks

-Power Generation & Cogeneration

-Steel & Metallurgy Industry

-Food & Beverage Industry

-Pharmaceutical Industry

-Aerospace Industry

-Environmental Protection

Technical Data
